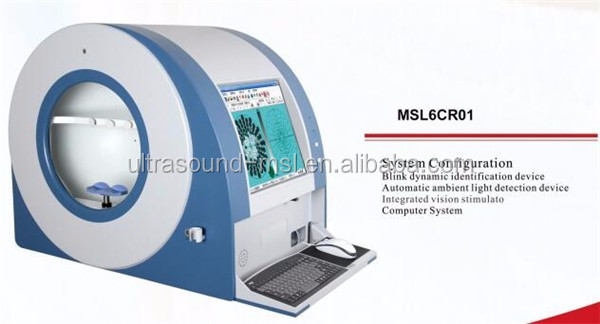

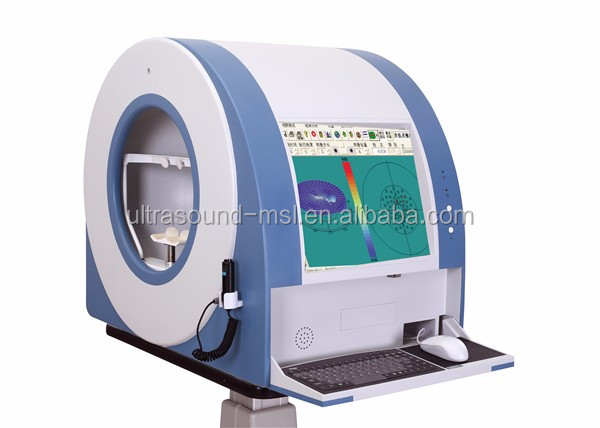

MSL6CR01 Traditional auto perimeter integrated ophthalmic visual field perimeter
1.With software 2.With computer (build-in)
Rear Automatic Computer perimetry Series:
Based on Windows Xp, MSL series of computer perimeter is designed for physicians to select patients for different quantitative detection, full-threshold detection, rapid threshold detection, blind spot detection and hundreds of combinations of procedures. It offers a variety of reports analyzed by international standards. It provides scientific data for clinical glaucoma, eye damage and other visual pathway diagnosis of ocular fundus and neurological diseases.Report types have digital map, black and white gray scale, color may, arbitrary sections, standard drawings, three-dimensional color map, digital comparison chart, probability plots, the cumulative defects graphs, statistical results
Technical specification of perimeter:
Radius of stimulator: 300mm±5mm 1. Stimulating source of LED(LED) 2. Two visual lights: yellow and red. 3. Stimulating strength: From 0nt (0asb) to318.310nt (1000asb), have 14 degree to adjust, the error is±10%. i. Error of background brightness:4asb±10% ii. Light spot: Diameter is 2mm +/- 0.25mm. iii. The number of stimulating and the stimulating time: A.388 spots (Red light: 61spots, yellow: 327spots); B: stimulating retention time: 0.2s--2.0s, the program can adjust (±5%); C: stimulating spacing interval: 0.5s --2.0s, the program can adjust (±5%); iv. Window of eye-position tracking: White-black CCD, directly tracking the testing eye; v. The length of chin rest: up-down: 80mm±10%; right-left 115mm±10% vi. Eye position tracking: When blinking, the system will alarm automatically.
